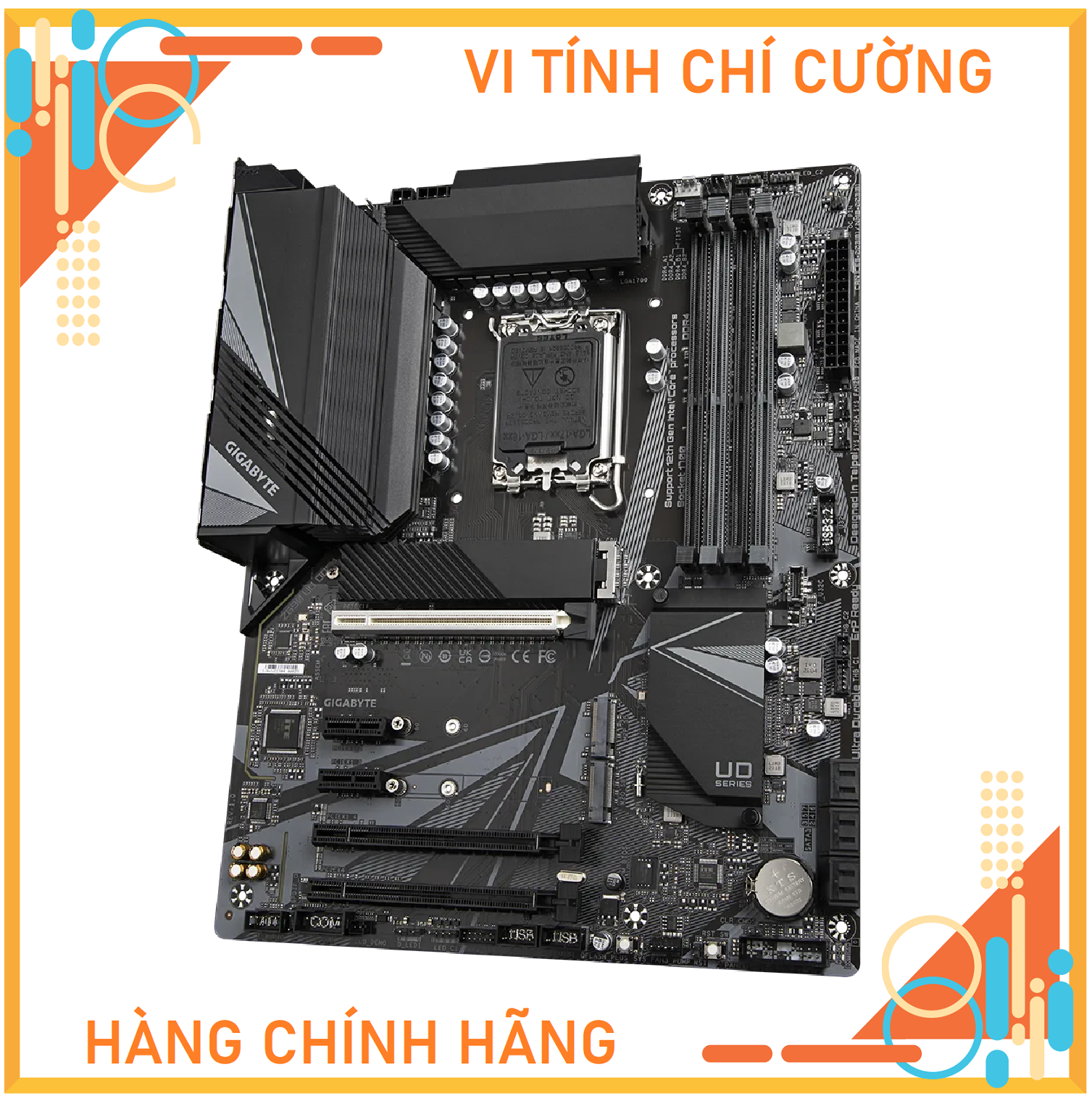

Mainboard Gigabyte Z690 UD D4 (Intel Z690, Socket 1700, ATX, 4 khe Ram DDR4)

Mã SP: Z690 UD DDR4    Lượt xem: 1436
Socket: LGA1700 hỗ trợ CPU intel thế hệ 12 Kích thước: ATX Khe cắm RAM: 4 khe (Tối đa 128GB) Khe cắm mở rộng: PCI Express x16 slot, PCI Express x1 slots Khe cắm ổ cứng: M.2 connector, 6 x SATA 6Gb/s
Tình trạng: Còn hàng
Bảo hành: 36 Tháng
5.100.000
[Giá đã bao gồm VAT]
Số lượng:    Đặt mua ngayNhanh chóng, thuận tiện
Hãy gọi ngay vào Hotline để được tư vấn trực tiếp về sản phẩm
Kinh Doanh
Kinh Doanh 1
Kinh Doanh 2 		Kế toán công nợ
Thanh Hằng 		Kế toán hóa đơn
Hóa Đơn
Phone/Zalo: 0918382260
Phone/Zalo: 0948900911
Email: [email protected] [email protected]


Mô tả

CPU
  1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
  2. L3 cache varies with CPU
Chipset
  1. Intel® Z690 Express Chipset
Memory
  1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
  2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version and HDCP 2.3
Audio
  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  4. Support for S/PDIF Out
LAN
  1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  3. 1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
  4. 2 x PCI Express x1 slots
Multi-Graphics Technology
  1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage InterfaceCPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  3. 6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
USBChipset:
  1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
  2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  3. 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
  1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x 4-pin ATX 12V power connector
  4. 1 x CPU fan header
  5. 1 x water cooling CPU fan header
  6. 3 x system fan headers
  7. 1 x system fan/water cooling pump header
  8. 2 x addressable LED strip headers
  9. 2 x RGB LED strip headers
  10. 3 x M.2 Socket 3 connectors
  11. 6 x SATA 6Gb/s connectors
  12. 1 x front panel header
  13. 1 x front panel audio header
  14. 1 x S/PDIF Out header
  15. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  16. 1 x USB 3.2 Gen 1 header
  17. 2 x USB 2.0/1.1 headers
  18. 1 x serial port header
  19. 2 x Thunderbolt™ add-in card connectors
  20. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  21. 1 x reset button
  22. 1 x reset jumper
  23. 1 x Q-Flash Plus button
  24. 1 x Clear CMOS jumper

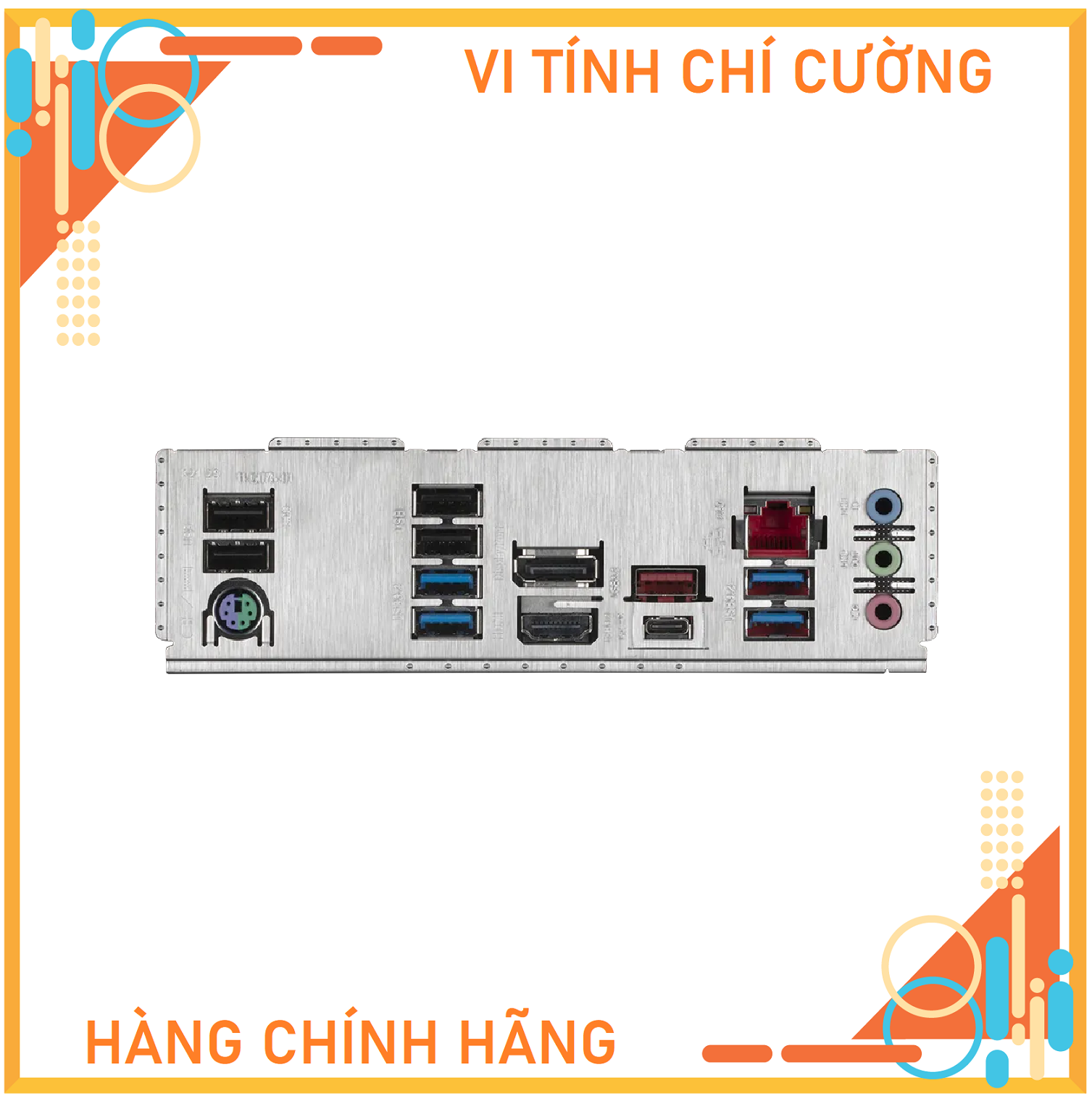

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x DisplayPort
  3. 1 x HDMI port
  4. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
  5. 1 x USB 3.2 Gen 2 Type-A port (red)
  6. 4 x USB 3.2 Gen 1 ports
  7. 4 x USB 2.0/1.1 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash Plus
  3. Support for Q-Flash
  4. Support for Xpress Install
Bundled Software
  1. Norton® Internet Security (OEM version)
  2. Realtek® Gaming LAN Bandwidth Control Utility
Operating System
  1. Support for Windows 10 64-bit
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
