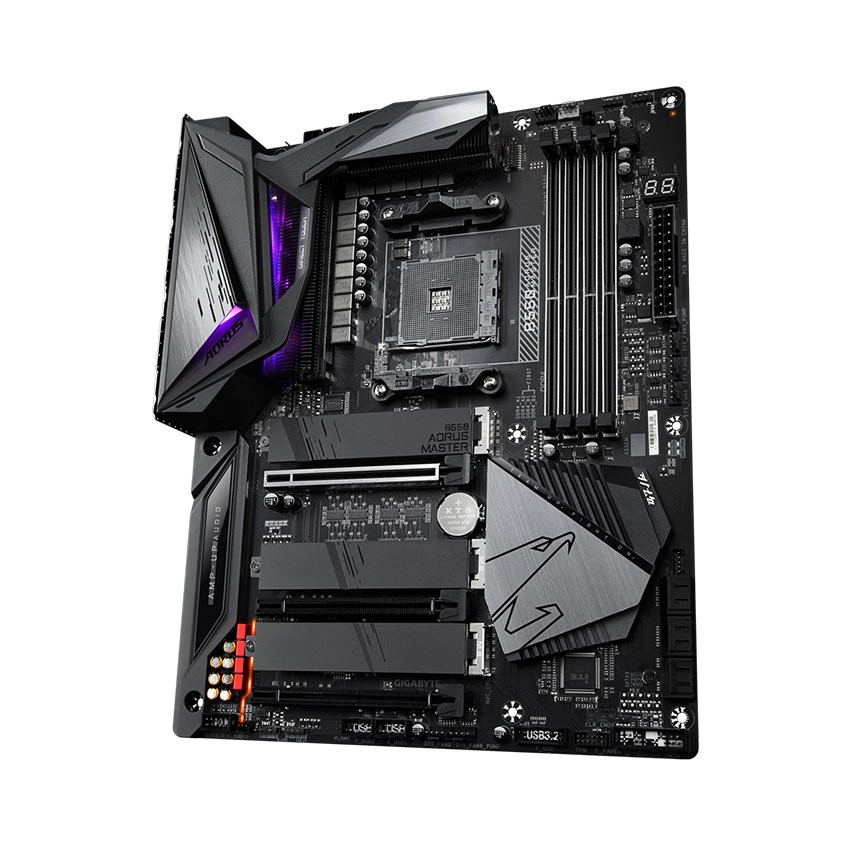

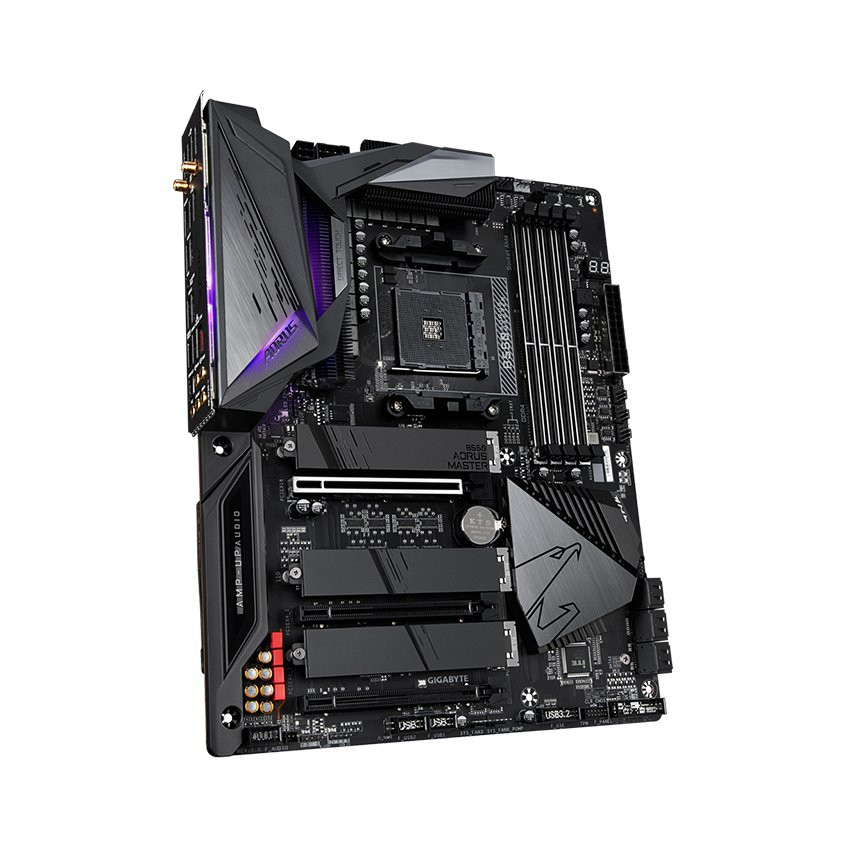

Mainboard GIGABYTE B550 AORUS MASTER

Sản phẩm

Main - Bo mạch chủ

Tên Hãng

Gigabyte

Model

B550 AORUS MASTER

CPU hỗ trợ

AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™

Chipset

AMD B550

RAM hỗ trợ

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Cổng xuất hình onboard

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Âm Thanh

Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio.

Support for DTS:X® Ultra

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless

Intel® Wi-Fi 6 AX200

WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 5

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.

Khe cắm mở rộng

1 x PCI Express x16 slot (PCIEX16),

2 x PCI Express x16 slots (PCIEX4_1/PCIEX4_2),
