Độ phân giải | XGA 1024 x 768 pixels |
Độ sáng | 3,800 lumens |
Tỉ lệ tương phản | 20.000:1 |
Bóng đèn | 230 W x 1 lamp |
Tuổi thọ | 10.000 giờ |
Tỉ lệ khung h ình | 4:03 |
Lens | Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm, throw ratio: 0.46:1 (Projection distance: 0.75 m [2.46 ft] for 80-inch image) |
Kích thước màn chiếu | 1.27–2.54 m (50–100 in), 4:3 aspect ratio |
Khoảng cách chiếu | 75cm |
Loa | 10w |
Keystone | Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual) |

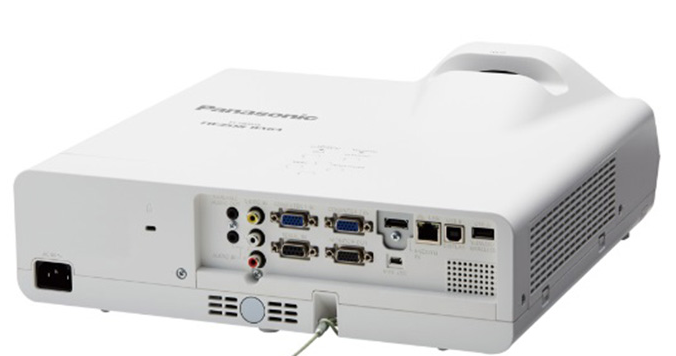

Cổng vào | HDMI 1 IN/HDMI 2 IN HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color), Audio signal: Linear PCM (Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) COMPUTER 1 IN D-sub HD 15-pin (female) x 1 [RGB/YPBPR/YC] COMPUTER 2 IN/1 OUT D-sub HD 15-pin (female) x 1 [RGB/YPBPR] (Input/output switching) VIDEO IN Pin jack x 1 AUDIO IN 1 M3 (L,R) x 1 AUDIO IN 2 Pin jack x 2 (L,R) AUDIO OUT M3 (L,R) x 1 (Variable) LAN RJ-45 x 1 for network connection, 10Base-T/100Base-TX, PJLink™ (Class 2) compatible SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compatible) USB USB Type-A (for Memory Viewer/Wireless Module [ET-WML100/AJ-WM50 series*3]/Power supply [DC 5 V/2 A]) |
Kích thước | 335 x 134.1 x 329 mm (13 3/16˝ x 5 9/32˝ x 12 15/16˝ ) |
Cân nặng | 3.9 kg |
